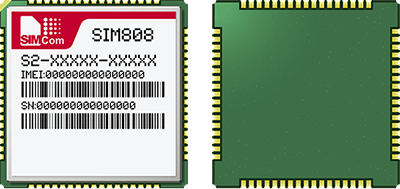

						General features

						•Quad-band 850/900/1800/1900MHz

						•GPRS multi-slot class 12/10

						•GPRS mobile station class B

						•Compliant to GSM phase 2/2+

						– Class 4 (2 W @ 850/900MHz)

						– Class 1 (1 W @ 1800/1900MHz)

						•Dimensions: 24*24*2.6mm

						•Weight: 3.3g

						•Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)

						•Supply voltage range 3.4 ~ 4.4V

						•Low power consumption

						•Operation temperature:-40℃ ~85℃

						Specifications for GPRS Data

						•GPRS class 12: max. 85.6 kbps (downlink/uplink)

						•PBCCH support

						•Coding schemes CS 1, 2, 3, 4

						•PPP-stack

						•USSD

						Specifications for SMS via GSM/GPRS

						•Point to point MO and MT

						•SMS cell broadcast

						•Text and PDU mode

							Compatibility

							•AT cellular command interface
					 |


						Software features

							•0710 MUX protocol

							•Embedded TCP/UDP protocol

							•FTP/HTTP

							•MMS

							•POP3/SMTP

							•DTMF

							•Jamming Detection

							•Audio Record

							•SSL

							•Bluetooth 3.0 (optional)

							•TTS CN(optional)

							•Embedded AT (optional)

						Specification for GPS

						•Receiver type

						-22 tracking /66 acquisition -channel

						-GPS L1 C/A code

						•Sensitivity

						-Tracking: -165 dBm

						-Cold starts : -148 dBm

						•Time-To-First-Fix

						-Cold starts: 32s (typ.)

						-Hot starts: <1s

						-Warm starts: 3s

						•Accuracy

						-Horizontal position : <2.5m CEP
				 |


						Interfaces

						•68 SMT pads including

						•Analog audio interface

						•PCM interface(optional)

						•SPI interface (optional)

						•RTC backup

						•Serial interface

						•USB interface

						•Interface to external SIM 3V/1.8V

						•Keypad interface

						•GPIO

						•ADC

						•GSM Antenna pad

						•Bluetooth Antenna pad

						•GPS Antenna pad

						Certifications

						• RoHS\REACH\CCC\RCM\CE(RED)\ICASA\FCC\
				 |
